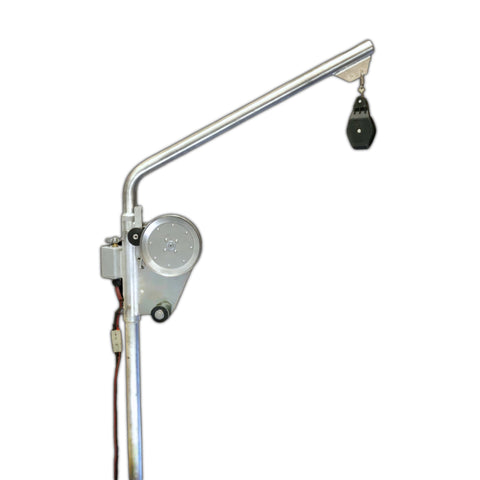

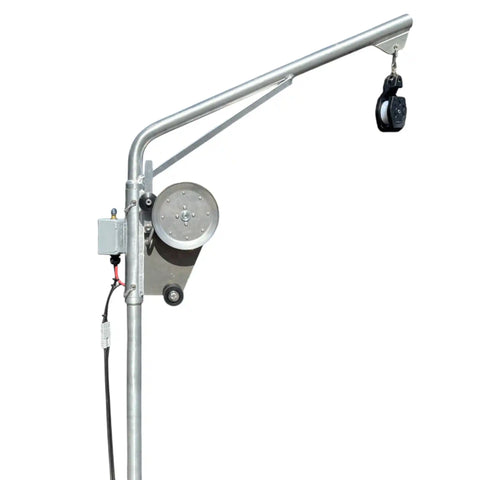

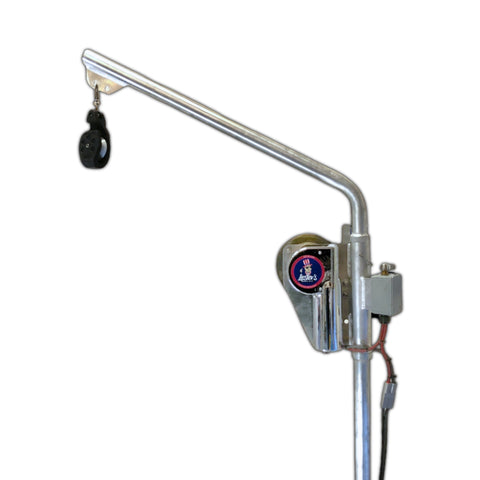

Lester's Sch-80 RA 12V Electric Pot/Trap Puller

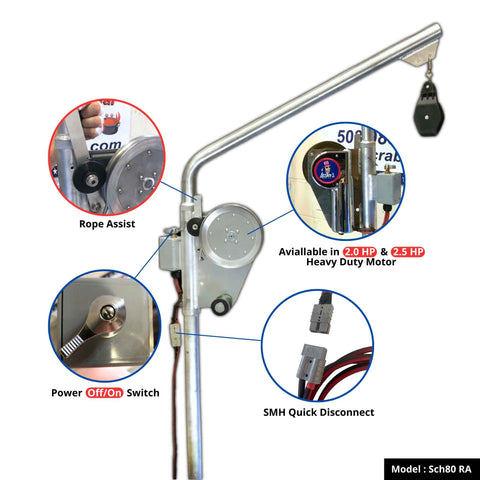

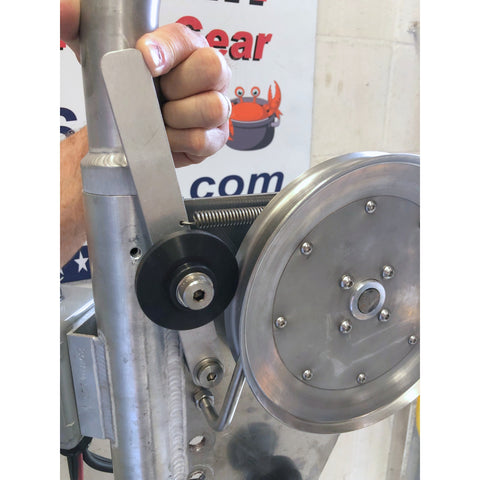

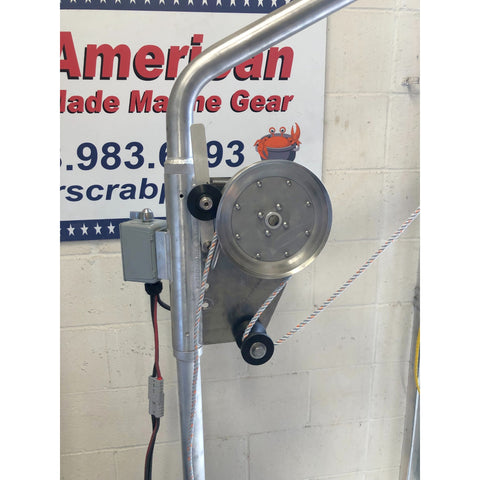

Lester's 3-piece RA 12V Electric Pot Puller package features a heavy-duty 1.5” Schedule 80 aluminum davit and a water-resistant 12V DC motor available in 2.0 HP or 2.5 HP. A Rope Assist device is installed to eliminate rope slippage.

The motor is sealed with oil bath roller bearings, steel and bronze alloy gears, a die-cast aluminum gearbox, and synthetic gear oil for long-lasting performance.

The motor package also includes a two-piece stainless knurled sheave and aluminum hub, a Delrin rope guide v-roller assembly and a 12-volt 50 amp Off/On electrical switch.

This motor assembly has a 10 ft 6-gauge wire harness, an 80 amp circuit breaker and an SMH Quick Disconnect for easy setup.

Our electric pullers come with a folbe open pulley block with a ¼” stainless-steel quick link, two ¼” stainless pins to attach the motor package to the davit and one 5/16” stainless pin to secure the davit to the mounting bracket. Delrin-sleeved gunnel and flat floor mount set are also included.

Lester’s RA 12V 2.0 HP 90:1 unit boasts a speed of 110 feet per minute and a pulling capacity of 150 lbs.

Lester’s RA 12V 2.5 HP 60:1 unit boasts a speed of 150 feet per minute and a pulling capacity of 200 lbs.

Both accept line sizes from 5/16” to 1/2”.

All unit stands 74” tall with a horizontal reach of 33”.

The unit comes with a 1-year warranty.
